WiFi Module

WiFi Adapter

       [NOTE]: For O.S. Compatibility check, go to COMPATIBILITY page.

Wifi Module

WF580M (Embedded WiFi Module for M2M & IOT)

     MCU:  ARM 32-bit CortexTM-M3

    Network standard: 802.11b, 802.11g, 802.11n(single stream)

    Frequency band: 2.4GHz

    Transmit power:

        +17dBm @802.11b

        +13dBm @802.11g

        +11dBm @802.11n

    Minimum receiver sensitivity: -80dBm

    Hardware encryption: WEP, WPA/WPA2

    Supported data rate:

        IEEE 802.11b, 1-11Mbps

        IEEE 802.11g, 6-54Mbps

        IEEE 802.11n(2.4GHz), 7.2-72.2 Mbps

    Antenna:

        on board PCB antenna

        external antenna pin

    Input/Output:

        UART

        GPIO

    Advanced 1X1 802.11n feature:

        full/half guard interval

        frame aggregation

        space time block coding(STBC)

        low density parity check(LDPC) encoding

    BRCM WICED fully compatible

    Web based configuration interface

    Ready-to-use firmware for different application

    Operational temperature: -40C to 85C

Order | Price List  Tech-Support

Click to View Details

WiFi Adapter

WF5711U/WF5712U (Raw IR/IrDA-to-WiFi Bridge -Battery Powered

  • Automatically converts IR (Raw IR: WF5711U)/ (IrDA: WF5712U) data to WiFi Direct, or WiFi IoT formats, and vice versa.

  • Completely offloads WiFi and Internet protocols from the Application Microcontroller.

  •  Supports 802.11 b/g/n station, Access point and WiFi Direct modes.

  •  BRCM WICED fully compatible.

  •  Management through the local network and the cloud

  •  Customized cloud solution

  • API for Windows, Android APP and iOS APP (custom design)

  • Low-power radio and advanced low-power modes.

  • Baud rate: a) RAW IR mode: Configurable 1.2, 2.4, 4.8, 9.6, 19.2, 38.4, 57.6 & 115.2 kbps; b) IrDA mode: Supports IrDA 1.0 SIR (9.6, ~ 115.2 kbps)

  • Application: Lighting Control, Precision Agriculture, Smart Home, Building Automation, Toys, Health and Wellness Monitoring, Security, Robots, Smart Grid, Instrument, & Industrial Automation

Order | Price List  Tech-Support

Click to View Details

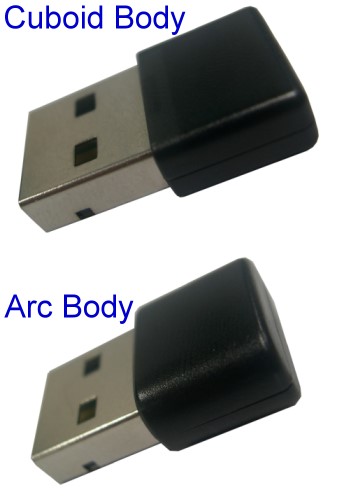

WF5000U  (WiFi 11n USB Adapter; 1T1R)

  • Operates in 2.4 GHz frequency bands

  • 1x1 SISO technology improves effective throughput and range over existing 802.11 b/g products

  • Data rates up to 150Mbps

  • 802.11e-compatible bursting and I standards

  • BPSK, QPSK, 16 QAM, 64 QAM modulation schemes

  • WEP, TKIP, AES, WPA and WPA2 hardware encryption schemes

Order | Price List  Tech-Support

Click to View Details

WF5100U  (WiFi 11n USB Adapter; 1T2R, WPS)

  • Operates in 2.4 GHz frequency bands

Freq.

Frequency

2.4 GHz

2.312-2.472 GHz,



2.484 GHz

  • 1x2 MIMO technology improves effective throughput and range over existing 802.11 b/g products

  • Data rates: up to 300Mbps

  •  WPS button (WiFi Protected Setup) for easy and secure establishment of a wireless network.

  •  802.11e-compatible bursting and I standards

  •  BPSK, QPSK, 16 QAM, 64 QAM, DBPSK, DQPSK, and CCK modulation schemes

  •  WEP, TKIP, and AES, WPA, WPA2 hardware encryption Schemes

Order | Price List  Tech-Support

Click to View Details

WF5900US (Dongle sized WiFi 802.11b & g Print Adapter Server)

  • Interfaces: USB 2.0; & WiFi fully compliant with 802.11b or 802.11g.
  • Supports Windows  2000/XP/2003/Vista, Mac OS X 10.2 or above, Linux
  • Printing Protocol Support:LPD/LPR (TCP/IP printer port), Internet Printing Protocol (IPP), Bonjour (Rendezvous);
  • Supports DHCP (client)  & Wi-Fi Protected Setup (WPS)
  • Transmission Distance: 50 m
  • 1 M bytes Flash memory & 8 M bytes SDRAM System memory
  • Software Upgradeable

Order | Price List  Tech-Support


Click for detailed spec.

WF8000U (WiFIR 2-In-1 WiFi & IrDA Combo Adapter)

  • The only 2-in-1 combo that supports both the WiFi and the IrDA features.
  • WiFi fully compliant with 802.11b or 802.11g.
  • IrDA fully compliant with IrDA specification 1.1 (max. baud rate 4Mbps.)
  • True PNP (Plug and Play) device and hot insertion capability.
  • Obtain power from USB, no external power supply required

Order | Price List  Tech-Support


Click for detailed spec.

802.11g USB Dongle (WiFi 802.11g USB Dongle)

  • 802.11g WiFi USB Dongle Driver CD

  • Windows 98SE/ME/2000/XP

Order | Price List  Tech-Support
